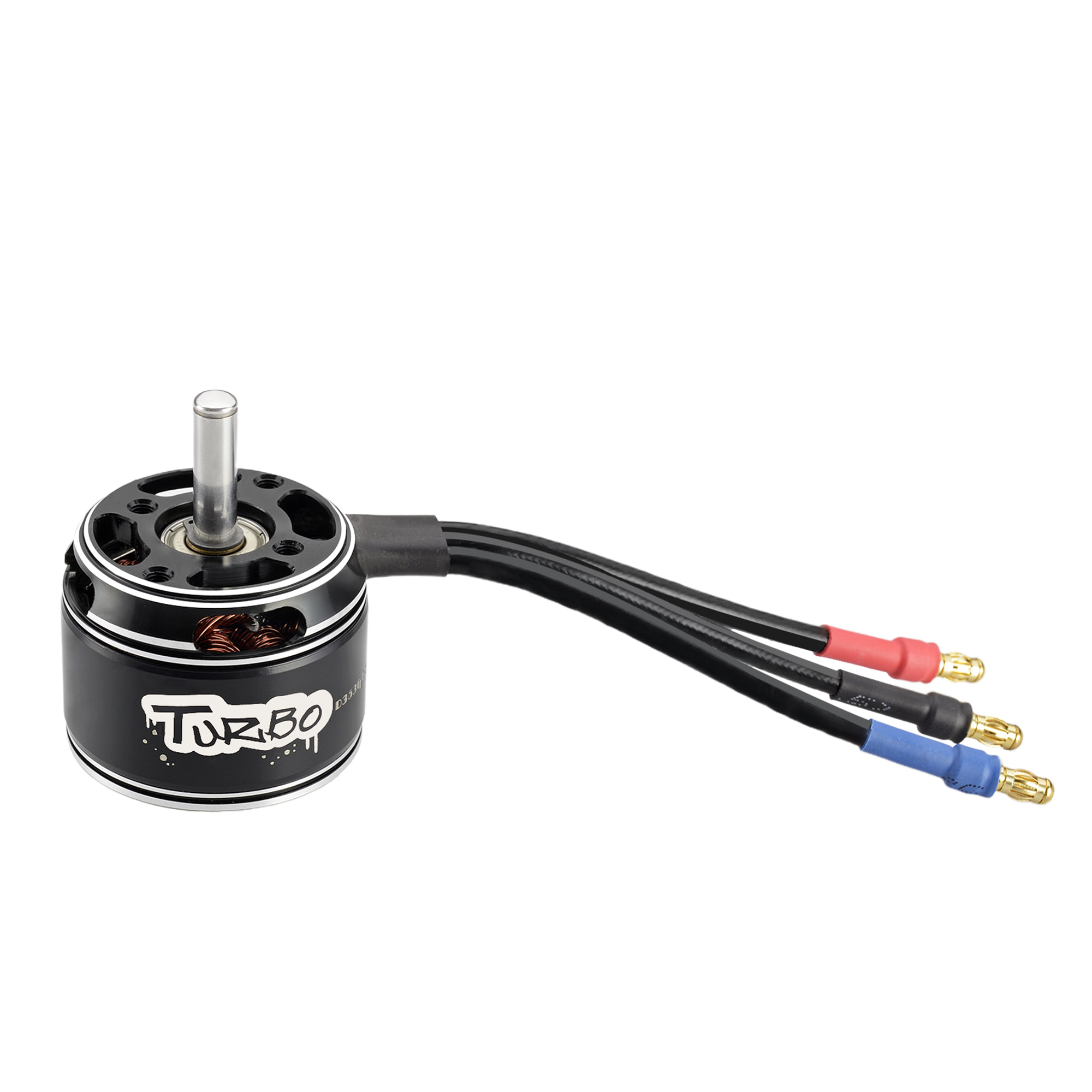

3530EVO Fixed Wing Motor

● Bobot: 75.1g (kalebu kabel)
●Motor Ukuran: 35.3x30mm
●Ukuran poros: 5.0*47.5mm
●Diameter stator: 28mm
● Dhuwur stator: 8mm
●Motor Gunung: 19*25mm (M3*4)
●Konfigurasi: 12N14P
●KV Value: 1100KV, 1400KV, 1700KV utawa customed KV
Ing ngisor iki minangka introduksi kanggo D3530EVO Fixed Wing Motor, muga-muga bisa mbantu sampeyan luwih ngerti D3530EVO Fixed Wing Motor. Welcome pelanggan anyar lan lawas kanggo terus kerjo bareng karo kita kanggo nggawe mangsa luwih apik bebarengan!

Model:D3530EVO

Kirim Pitakonan

Deskripsi Produk

D3530 EVO Brushless DC Motor Aplikasi

Kanggo 3530EVO Fixed Wing Motor, saben wong duwe keprihatinan khusus sing beda-beda, lan sing ditindakake yaiku kanggo ngoptimalake syarat produk saben pelanggan, saengga kualitas Motor Wing Fixed 3530EVO wis ditampa kanthi apik dening akeh pelanggan lan entuk reputasi sing apik. akeh negara. Flash Hobby 3530EVO Fixed Wing Motor duwe desain karakteristik & kinerja praktis & rega sing kompetitif, kanggo informasi luwih lengkap babagan 3530EVO Fixed Wing Motor, hubungi kita. D3530EVO（2808） Brushless DC Motor untuk Helikopter Cradle Mesin Kopi Mesin Teh Susu Mesin Bor Listrik Mesin Mowing Lengan Robot

3530 EVO Brushless DC Motor Fitur
48H Level Magnet
Precision Balance rotor Test
14P12N Desain Motor Torsi Dhuwur
CNC 6061-T6 Aluminium Bell
Dhuwur RPM Impor (NSK/NMB) Bearing

Dhuwur Suhu Tahan Tembaga Wire Winding

3530 EVO Brushless DC Motor Spesifikasi

Bobot: 55.7g (kalebu kabel)
Ukuran Motor : 28 x 26 mm
Ukuran poros: 3.0*41.0mm
Motor Mount: 16*19mm (M3*4)
Konfigurasi: 12N14P

3530 EVO KV Nilai kanggo Pilihan

Nilai KV: 1100KV, 1400KV, 1700KV utawa customed KV

KV: 1100 KV
Daya maksimum: 380W
Max Current: 23.27A
Ora Beban saiki: 1.16A / 10V
Resistance: 97.5mΩ
Baterei: 3-4S Lipo
Prop sing disaranake: prop 8 inci

KV: 1400KV
Daya maksimum: 663W
Saiki Max: 42.97A
Ora Beban saiki: 1.77A / 10V
Resistance: 54.4mΩ
Baterei: 3-4S Lipo
Prop sing disaranake: prop 8 inci

KV: 1700 KV
Daya maksimum: 702.5W
Saiki Max: 44.92A
Ora Beban saiki: 2.48A / 10V
Resistance: 34.3mΩ
Baterei: 3-4S Lipo
Prop sing disaranake: prop 7 inci

3530 EVO Motor Drawing:

D3530 EVO RC Brushless Motor Test Datas

DATA TEKNIK MOTOR:
Ora.	Volt (V)	Prop	Throttle(%)	SAIKI (A)	Daya (W)	Nyurung (g)	PRM	Efisiensi (g/W)	Operasi suhu (℃)
D3530-1100KV(EVO)	12.45	7 x5	40%	3.10	38.6	221	6162	5.7	37.2℃
	12.43		50%	4.21	52.3	284	6874	5.4
	12.41		60%	5.30	65.8	311	7441	4.7
	12.38		70%	6.63	82.1	373	8097	4.5
	12.34		80%	8.83	109.0	436	8941	4.0
	12.28		90%	11.62	142.7	519	9862	3.6
	12.26		100%	13.00	159.4	565	10156	3.5
	12.82	APC8x6	40%	3.33	42.7	264	6299	6.2	38.3℃
	12.75		50%	4.53	57.8	331	7043	5.7
	12.60		60%	5.80	73.1	393	7639	5.4
	12.45		70%	7.36	91.6	446	8323	4.9
	12.43		80%	9.93	123.4	555	9178	4.5
	12.40		90%	13.29	164.8	670	10060	4.1
	12.33		100%	14.75	181.9	715	10347	3.9
	16.86	7 x5	40%	4.65	78.4	352	7799	4.5	39.1℃
	16.75		50%	6.45	108.0	433	8691	4.0
	16.70		60%	8.35	139.4	513	9496	3.7
	16.50		70%	10.82	178.5	627	10363	3.5
	16.45		80%	14.86	244.4	753	11467	3.1
	16.32		90%	19.51	318.4	929	12467	2.9
	16.22		100%	21.52	349.1	958	12764	2.7
	16.77	APC8x6	40%	4.71	79.0	390	7660	4.9	39.6℃
	16.70		50%	6.56	109.6	477	8590	4.4
	16.65		60%	8.69	144.7	582	9370	4.0
	16.50		70%	11.44	188.8	695	10227	3.7
	16.48		80%	15.92	262.4	877	11264	3.3
	16.43		90%	21.12	347.0	1021	12125	2.9
	16.36		100%	23.27	380.7	1080	12349	2.8
D3530-1400KV(EVO)	12.39	7 x5	40%	5.52	68.4	296	7357	4.3	38.5℃
	12.35		50%	7.56	93.4	352	8238	3.8
	12.31		60%	9.78	120.4	412	8985	3.4
	12.27		70%	12.31	151.0	504	9766	3.3
	12.18		80%	16.96	206.6	662	10790	3.2
	12.07		90%	22.19	267.8	784	11772	2.9
	12.01		100%	24.38	292.8	826	12111	2.8
	12.86	APC8x6	40%	6.41	82.4	442	6553	5.4	39.3℃
	12.80		50%	9.09	116.4	607	7405	5.2
	12.79		60%	12.93	165.4	756	8315	4.6
	12.69		70%	17.57	223.0	919	9142	4.1
	12.56		80%	23.26	292.1	1046	10014	3.6
	12.38		90%	30.30	375.1	1284	10721	3.4
	12.28		100%	32.63	400.7	1351	10891	3.4
	12.38	APC9x6	40%	6.01	74.4	356	6418	4.8	39.8℃
	12.34		50%	8.49	104.8	538	7272	5.1
	12.27		60%	11.96	146.7	693	8133	4.7
	12.19		70%	16.14	196.7	861	8949	4.4
	12.08		80%	21.74	262.6	1066	9773	4.1
	11.93		90%	28.34	338.1	1195	10569	3.5
	11.86		100%	30.83	365.6	1283	10790	3.5
	16.28	APC8x6	40%	8.58	139.7	654	7679	4.7	40.7℃
	16.19		50%	12.66	205.0	836	8724	4.1
	16.07		60%	18.34	294.7	1009	9730	3.4
	15.84		70%	24.11	381.9	1241	10598	3.2
	15.65		80%	31.61	494.7	1469	11341	3.0
	15.47		90%	40.16	621.3	1650	12010	2.7
	15.43		100%	42.97	663.0	1662	12070	2.5
D3530-1700KV(EVO)	12.65	7 x5	40%	9.17	116.0	430	8664	3.7	39.6℃
	12.60		50%	12.77	160.9	522	9630	3.2
	12.52		60%	16.68	208.8	614	10457	2.9
	12.40		70%	21.83	270.7	762	11455	2.8
	12.23		80%	28.73	351.4	912	12538	2.6
	11.95		90%	37.08	443.1	1100	13430	2.5
	11.92		100%	40.81	486.5	1167	13725	2.4
	12.68	APC8x6	40%	9.29	117.8	502	8524	4.3	40,3 ℃
	12.61		50%	13.07	164.8	620	9477	3.8
	12.53		60%	17.41	218.1	737	10299	3.4
	12.42		70%	23.26	288.9	894	11222	3.1
	12.27		80%	31.38	385.0	1056	12150	2.7
	12.07		90%	41.31	498.6	1207	12963	2.4
	11.99		100%	44.51	533.7	1229	13224	2.3
	16.57	APC7x4	40%	10.37	171.8	545	11871	3.2	40,3 ℃
	16.49		50%	13.85	228.4	716	13091	3.1
	16.37		60%	17.67	289.3	869	14130	3.0
	16.14		70%	22.83	368.5	1046	15259	2.8
	15.92		80%	30.40	484.0	1255	16705	2.6
	15.65		90%	39.43	617.1	1474	17890	2.4
	15.64		100%	44.92	702.5	1577	18461	2.2
Cathetan: Kondisi tes suhu yaiku suhu permukaan motor ing throttle 100% nalika motor mlaku 15 s. suhu lingkungan 26 ℃
