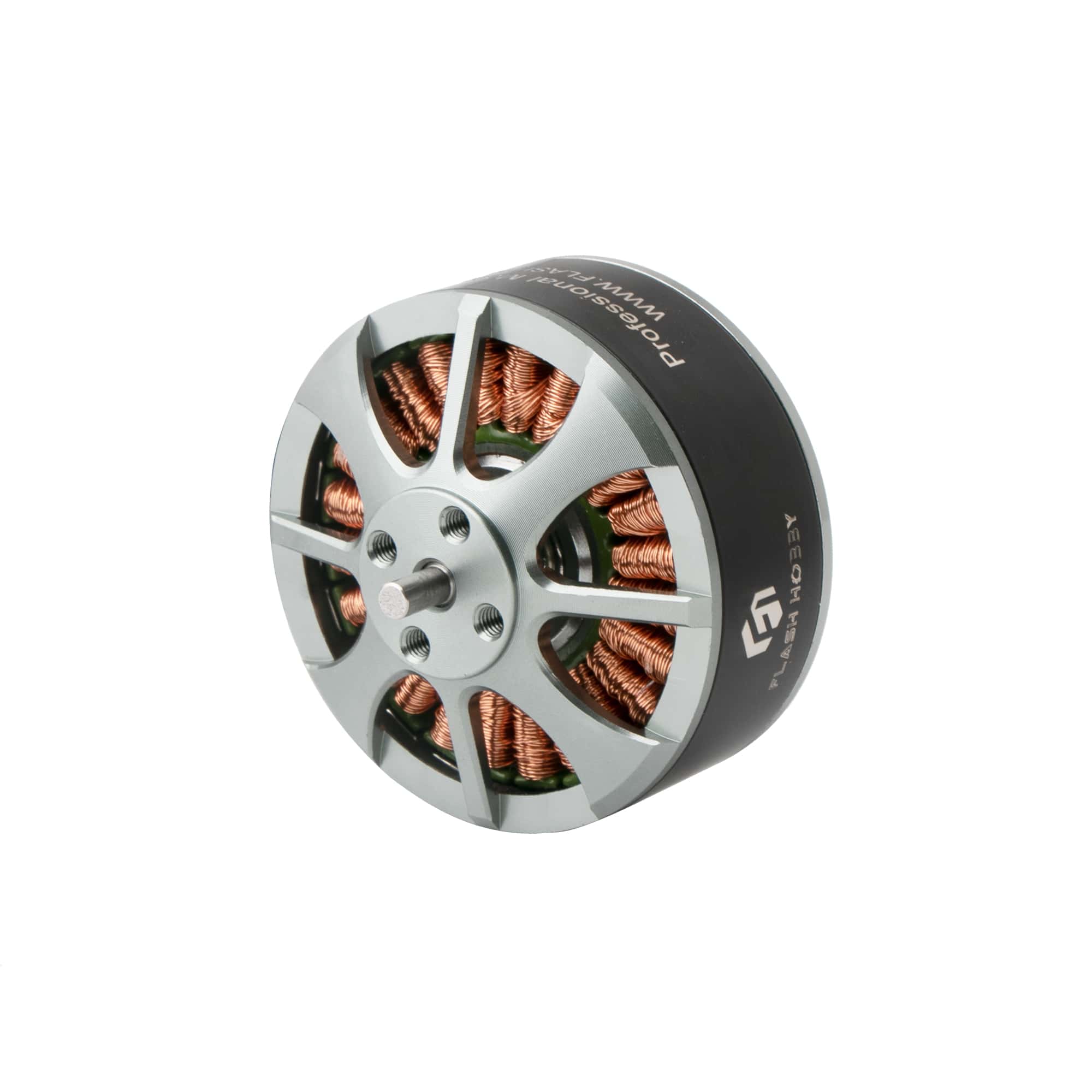

4112 MultiRotor Motor

4112 RC Brushless Motor kanggo FPV Drone, Kelas X Drone, Agricultural Drone

Fitur:
48SH Level Magnet
Precision Balance rotor Test
12N14P Desain Motor Torsi Dhuwur
CNC 6061-T6 Aluminium Bell
Dhuwur RPM Impor (NSK/NMB) Bearing
Dhuwur Suhu Tahan Tembaga Wire Winding

âBobot: 151,0g (kalebu kabel)
âUkuran Motor: 47 x 29.8mm
âDiameter poros: 4.0mm
âMotor Mount: 19*25mm (M3*4)
âKonfigurasi: 24N22P
âKabel Motor: 18#AWG 220mm
âNilai KV: 320KV, 400KV, 480KV utawa KV khusus

âRekomendasi: 12~15" aplikasi prop

Spesifikasi Motor MT4112 320KV
Tarik maksimal 2030g
Volt¼22.2V(6S)
Disaranake ESC: 20A ~ 40A
Daya maksimum: 297.5W
Disaranake Prop: CF1447TM, CF1555TM Inch prop

MT4112-320KV
Prop（inch）	Throttle（%）	Tegangan（V）	Muatan Saiki（A）	Daya (W)	Tarik (g)	Efisiensi (g/W)	Suhu (ing beban throttle lengkap 1 menit)
CF1447	41%	22.2	1	22.2	290	13.06	46℃
	51%	22.2	2	44.4	520	11.71
	56%	22.2	3	66.6	680	10.21
	61%	22.2	4	88.8	840	9.46
	64%	22.2	5	111.0	980	8.83
	68%	22.2	6	133.2	1150	8.63
	75%	22.2	8	177.6	1390	7.83
	81%	22.2	10	222.0	1600	7.21
	100%	22.2	11.1	246.4	1710	6.94
CF1555TM	41%	22.2	1	22.2	320	14.41	55℃
	48%	22.2	2	44.4	540	12.16
	53%	22.2	3	66.6	750	11.26
	57%	22.2	4	88.8	890	10.02
	60%	22.2	5	111.0	1040	9.37
	64%	22.2	6	133.2	1190	8.93
	70%	22.2	8	177.6	1430	8.05
	76%	22.2	10	222.0	1680	7.57
	81%	22.2	12	266.4	1870	7.02
	100%	22.2	13.4	297.5	2030	6.82

Spesifikasi Motor MT4112 400KV
Tarik maksimal 2530g
Volt¼22.2V(6S)
Disaranake ESC: 20A ~ 40A
Daya maksimum: 439.6W
Disaranake Prop: CF1147TM, CF1555TM Inch prop

MT4112-400KV
Prop（inch）	Throttle（%）	Tegangan（V）	Muatan Saiki（A）	Daya (W)	Tarik (g)	Efisiensi (g/W)	Suhu (ing beban throttle lengkap 1 menit)
CF1238	40%	22.2	1	22.2	270	12.16	45℃
	51%	22.2	2	44.4	450	10.14
	59%	22.2	3	66.6	610	9.16
	64%	22.2	4	88.8	770	8.67
	67%	22.2	5	111.0	890	8.02
	72%	22.2	6	133.2	1020	7.66
	75%	22.2	7	155.4	1160	7.46
	79%	22.2	8	177.6	1250	7.04
	100%	22.2	9.7	215.3	1460	6.78
CF1447	38%	22.2	1	22.2	300	13.51	58℃
	46%	22.2	2	44.4	480	10.81
	51%	22.2	3	66.6	670	10.06
	54%	22.2	4	88.8	830	9.35
	57%	22.2	5	111.0	960	8.65
	60%	22.2	6	133.2	1100	8.26
	63%	22.2	7	155.4	1230	7.92
	65%	22.2	8	177.6	1340	7.55
	70%	22.2	10	222.0	1550	6.98
	75%	22.2	12	266.4	1730	6.49
	79%	22.2	14	310.8	1930	6.21
	100%	22.2	16.9	375.2	2180	5.81
CF1555TM	38%	22.2	1	22.2	320	14.41	65℃
	44%	22.2	2	44.4	540	12.16
	48%	22.2	3	66.6	730	10.96
	51%	22.2	4	88.8	870	9.80
	54%	22.2	5	111.0	1020	9.19
	57%	22.2	6	133.2	1170	8.78
	59%	22.2	7	155.4	1290	8.30
	62%	22.2	8	177.6	1420	8.00
	65%	22.2	10	222.0	1630	7.34
	70%	22.2	12	266.4	1850	6.94
	74%	22.2	14	310.8	2050	6.60
	78%	22.2	16	355.2	2210	6.22
	82%	22.2	18	399.6	2390	5.98
	100%	22.2	19.8	439.6	2530	5.76

Spesifikasi Motor MT4112 480KV
Tarik maksimal 2780g
Volt 22.2V (4S)
Disaranake ESC: 20A ~ 40A
Daya maksimum: 590.5W
Disaranake Prop: CF1447TM, CF1238 Inch prop

MT4112-480KV
Prop（inch）	Throttle（%）	Tegangan（V）	Muatan Saiki（A）	Daya (W)	Tarik (g)	Efisiensi (g/W)	Suhu (ing beban throttle lengkap 1 menit)
CF1447	38%	14.8	1	14.8	200	13.51	49℃
	47%	14.8	2	29.6	360	12.16
	53%	14.8	3	44.4	490	11.04
	57%	14.8	4	59.2	610	10.30
	60%	14.8	5	74.0	710	9.59
	63%	14.8	6	88.8	820	9.23
	69%	14.8	8	118.4	1010	8.53
	75%	14.8	10	148.0	1180	7.97
	79%	14.8	12	177.6	1340	7.55
	100%	14.8	14.1	208.7	1480	7.09
CF1555TM	38%	14.8	1	14.8	210	14.19	52℃
	45%	14.8	2	29.6	370	12.50
	50%	14.8	3	44.4	520	11.71
	54%	14.8	4	59.2	650	10.98
	57%	14.8	5	74.0	780	10.54
	60%	14.8	6	88.8	860	9.68
	65%	14.8	8	118.4	1070	9.04
	70%	14.8	10	148.0	1240	8.38
	74%	14.8	12	177.6	1400	7.88
	78%	14.8	14	207.2	1530	7.38
	100%	14.8	17.1	253.1	1770	6.99
CF1238	34%	22.2	1	22.2	260	11.71	54℃
	42%	22.2	2	44.4	440	9.91
	50%	22.2	3	66.6	590	8.86
	54%	22.2	4	88.8	740	8.33
	58%	22.2	5	111.0	860	7.75
	61%	22.2	6	133.2	1020	7.66
	64%	22.2	7	155.4	1130	7.27
	66%	22.2	8	177.6	1240	6.98
	71%	22.2	10	222.0	1480	6.67
	75%	22.2	12	266.4	1660	6.23
	79%	22.2	14	310.8	1850	5.95
	100%	22.2	16.7	370.7	2060	5.56
CF1447	33%	22.2	1	22.2	270	12.16	79℃
	40%	22.2	2	44.4	470	10.59
	44%	22.2	3	66.6	630	9.46
	48%	22.2	4	88.8	780	8.78
	50%	22.2	5	111.0	910	8.20
	53%	22.2	6	133.2	1040	7.81
	55%	22.2	7	155.4	1180	7.59
	57%	22.2	8	177.6	1290	7.26
	61%	22.2	10	222.0	1510	6.80
	64%	22.2	12	266.4	1710	6.42
	66%	22.2	14	310.8	1880	6.05
	70%	22.2	16	355.2	2020	5.69
	73%	22.2	18	399.6	2180	5.46
	76%	22.2	20	444.0	2350	5.29
	81%	22.2	24	532.8	2630	4.94
	100%	22.2	26.6	590.5	2780	4.71
