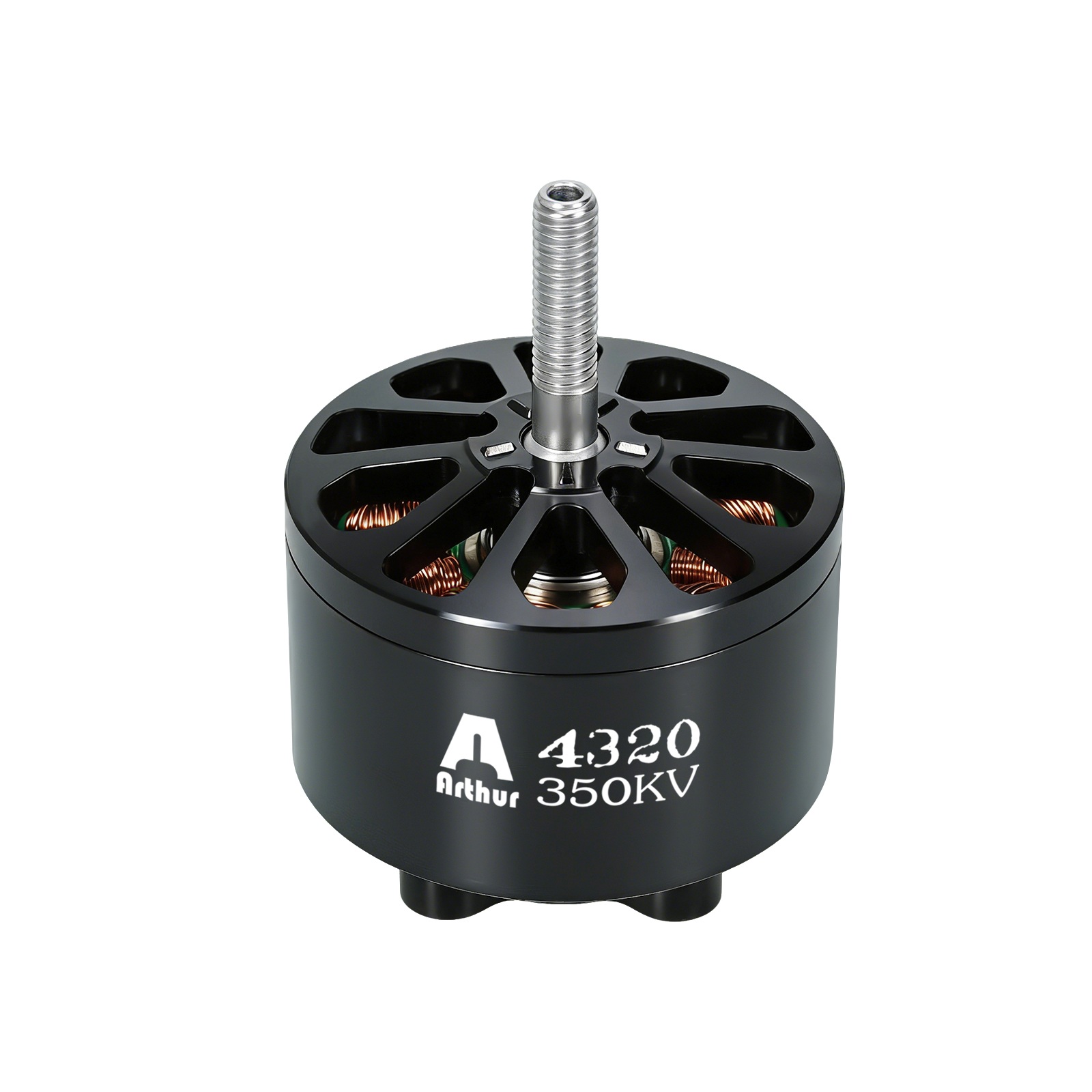

A4320 350KV Brushless Motor

A4320 Brushless Motor
● Bobot: 318g (kalebu kabel)
●Ukuran Motor: 50.5 x 43mm
● Diameter poros: 6.0mm
* bisa dadi 5 utawa 6mm minangka saben klien request
●Motor Gunung: 30*30mm(M4*4)
●Konfigurasi: 12N14P
●Kabel Motor: 16#AWG 600mm
●KV Value: 350KV utawa customed KV

Model:A4320

Kirim Pitakonan

Arthurs 4320 350KV BLDC motor

Flash Hobby, perusahaan motor tanpa sikat internasional! Dilengkapi tim R&D profesional lan produksi kanthi otomatis
baris, kita nggabungake riset, produksi, lan dodolan. Nawakake kustomisasi fleksibel lan macem-macem aplikasi,
produk kita diekspor ing saindenging jagad, dadi sumber daya inti sing dipercaya kanggo pimpinan industri.

350 KV

Nilai KV

5646 W

Daya Maks

11272 g

Max Tarik

6 mm

Poros Ø

4-12 S

Tegangan Rated (Lipo)

13"-15"

Prop

Arthur 4320 350KV Brushless motor

350KV utawa KV customed

Fitur

Precision Balance rotor Test

14P12N Desain Motor Torsi Dhuwur

CNC 6061-T6 Aluminium Bell

RPM dhuwur 5x11x5mm Bearing

Dhuwur Suhu Tahan Tembaga Wire Winding

Prop sing disaranake: prop 13 ~ 15 inch

Spesifikasi

Motor A4320 350KV

Tarik maksimal: 11272g

Tegangan: 50.4V (12S)

Disaranake ESC: 70A ~ 100A

Daya maksimum: 5645,9 W

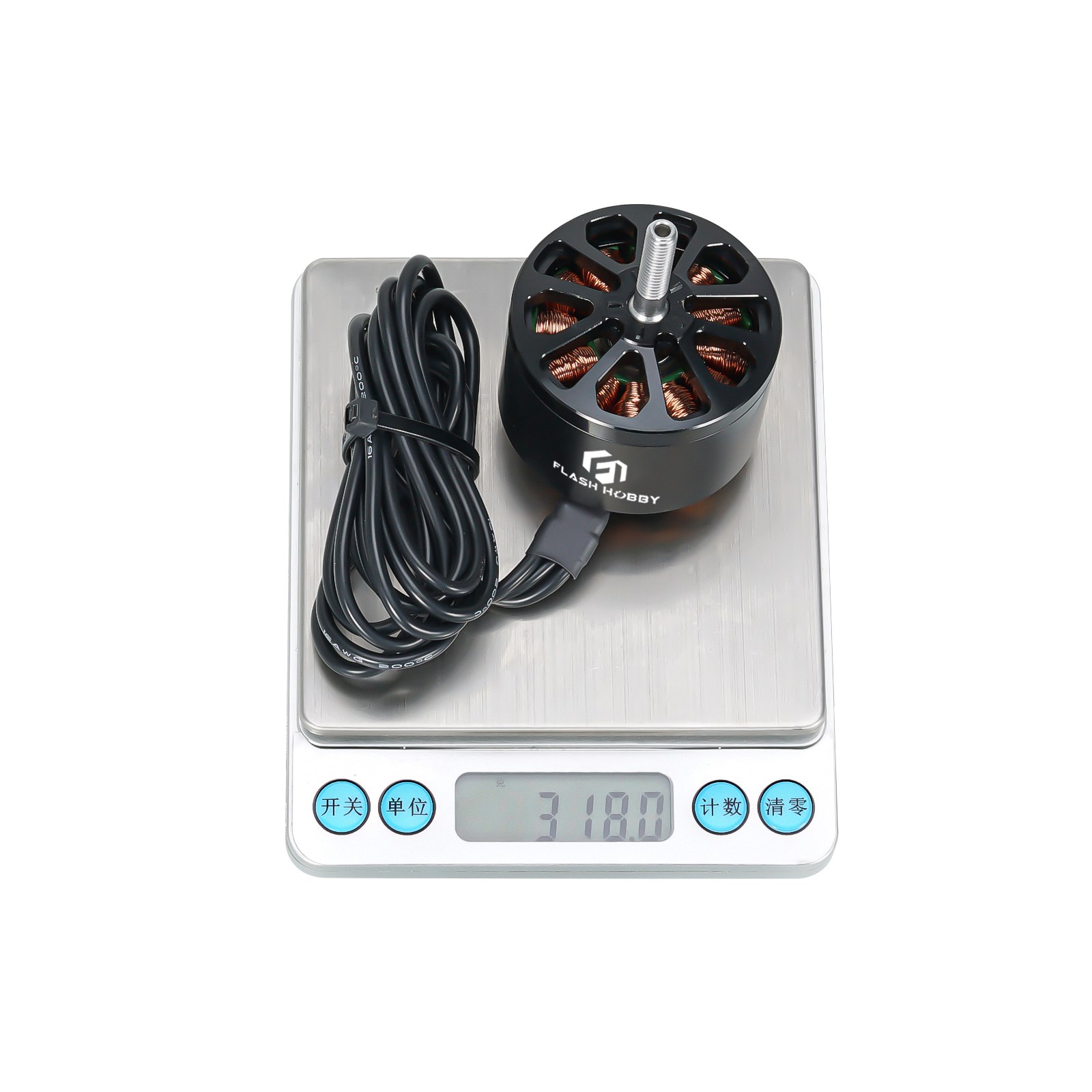

Bobot: 318g (kalebu kabel)

Motor ukuran: 51.1x43.7mm

Diameter poros: ф6.0mm

Motor Mount: 30*30mm (M4*4)

Kabel Motor: 16#AWG 600mm

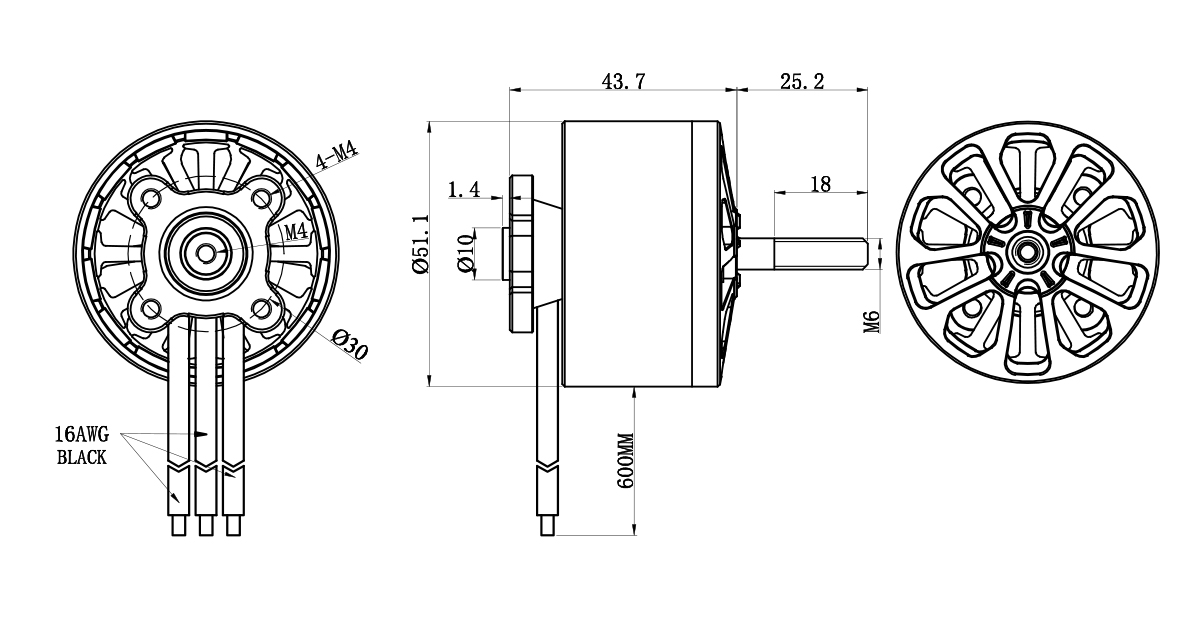

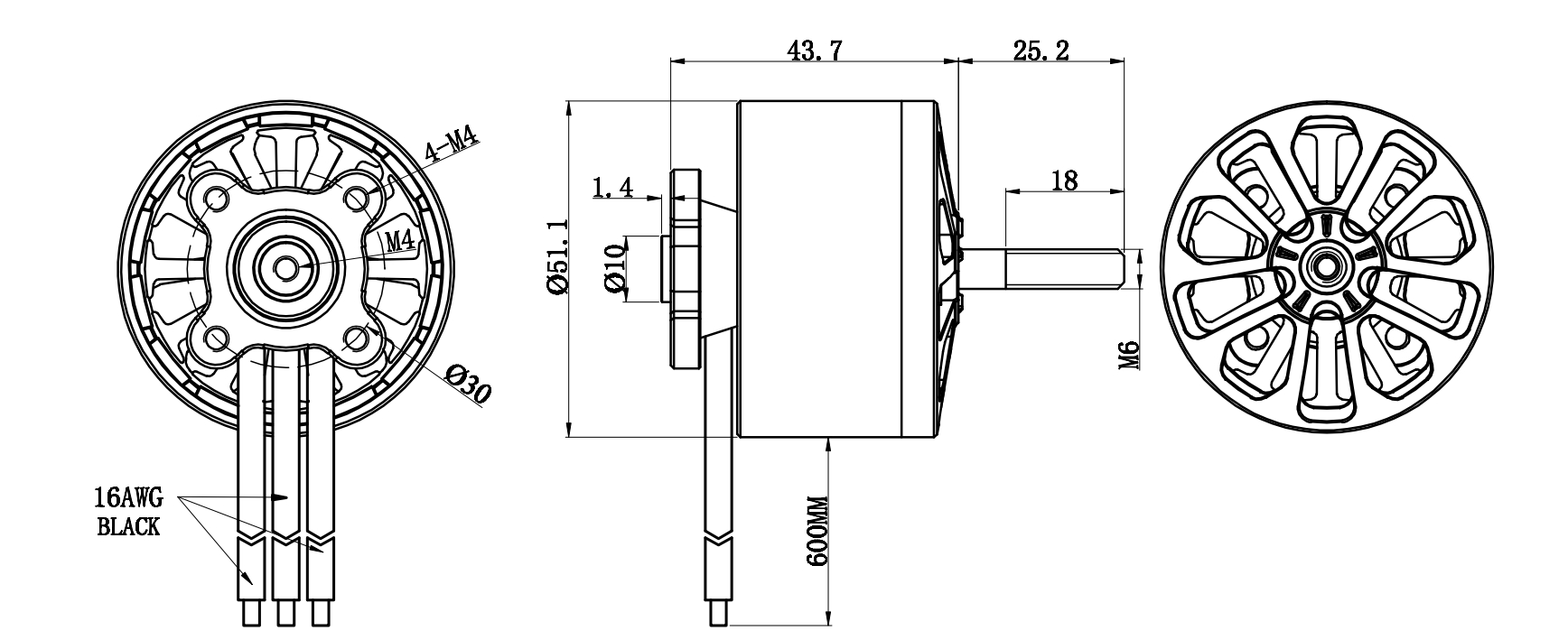

Gambar Teknik

Spesifikasi

Nilai KV	350KV	Bobot (kalebu kabel)	318g (kalebu kabel)
Ukuran Motor	ф50,5x43,1 mm	Rintangan internal	0,05Ω
Kabel Motor Kab	16AWG-600 MM,	Konfigurasi	12N/14P
poros	6,0 mm	Tegangan Rated (Lipo)	4-12S
Arus Idle	1.06/16V	Arus Puncak (60S)	114.8A
Daya Maks	5645.9W	Prop Mount Screw Dia	4-M4
Max Tarik	11272G	Standar kontrol keseimbangan dinamis	≤8 mg

Data Tes

IKI NO.	Prop	Throttle	Volt (V)	Ampere (A)	Watt (W)	Revol ution (RPM)	Tekanan (g)	Efisiensi (g/W)	Suhu operasi (℃)
A4320-350KV	GF1308	50%	50.34	12.07	607.8	8157	2844	4.68	27.4
		60%	50.28	16.94	851.8	9163	3720	4.37	29.2
		70%	50.20	25.59	1284.5	10338	4880	3.80	31.3
		80%	50.08	37.27	1866.3	11490	6183	3.31	33.4
		90%	49.91	52.19	2604.9	12592	7639	2.93	37.8
		100%	49.71	70.30	3494.9	13544	8961	2.56	44.1
A4320-350KV	HQ1309	50%	50.29	15.85	797.2	7457	3327	4.17	36.1
		60%	50.20	25.33	1271.7	8672	4581	3.60	37.4
		70%	50.07	36.24	1814.4	9777	5946	3.28	40.0
		80%	49.90	53.40	2664.4	10760	7225	2.71	43.4
		90%	49.70	71.78	3567.1	11706	8367	2.35	48.2
		100%	49.44	95.62	4727.5	12359	9292	1.97	54.5
A4320-350KV	GF1507	50%	50.24	19.55	982.3	7089	4472	4.55	35.9
		60%	50.12	31.99	1603.3	8237	5906	3.68	38.3
		70%	49.95	47.96	2395.6	9225	7465	3.12	44.3
		80%	49.74	67.13	3339.0	9981	8736	2.62	55.5
		90%	49.51	87.44	4329.2	10574	9910	2.29	71.1
		100%	49.24	109.40	5386.9	11272	11201	2.08	96.2
A4320-350KV	HQ1507	50%	50.25	18.46	927.4	7115	4594	4.95	32.0
		60%	50.12	33.76	1691.8	8227	6230	3.68	35.2
		70%	49.94	47.94	2394.1	9139	7914	3.31	40.8
		80%	49.71	66.89	3325.1	9823	9356	2.81	51.4
		90%	49.47	96.01	4749.6	10295	10421	2.19	71.0
		100%	49.18	114.80	5645.9	10932	11284	2.00	99.7
