A2207.5 Brushless Motor
Temokake pilihan akeh A2207.5 Brushless Motor saka China ing Flash Hobby. Nyedhiyani layanan sawise-sales profesional lan rega tengen, looking nerusake kanggo kerjasama.
●Bobot: 36.0g (kalebu kabel)
●Ukuran Motor: 27,5 x 18,5 mm
●Diameter stator: 22mm
● Dhuwur stator: 7.5mm
● Diameter poros: 4mm
●Ukuran Poros Baling-Baling: M5
●Motor Mount: 16*16mm (M3*4)
●Konfigurasi: 12N14P
●Kabel Motor: 20#AWG 150mm
●KV Value: 1900KV, 2500KV, 2750KV utawa customed KV
● Rekomendasi: 5~6 inch aplikasi prop
●684 NSK Bearing
● 7075-T6 lonceng Aluminium
●Desain warna macem-macem
●0.15mm Silicon steel sheet saka Kawasaki, Japan
Kacepetan (RPM): 0~1900PRM/1v
●Bobot: 36.0g (kalebu kabel)
●Ukuran Motor: 27,5 x 18,5 mm
●Diameter stator: 22mm
● Dhuwur stator: 7.5mm
● Diameter poros: 4mm
●Ukuran Poros Baling-Baling: M5
●Motor Mount: 16*16mm (M3*4)
●Konfigurasi: 12N14P
●Kabel Motor: 20#AWG 150mm
●KV Value: 1900KV, 2500KV, 2750KV utawa customed KV
● Rekomendasi: 5~6 inch aplikasi prop
●684 NSK Bearing
● 7075-T6 lonceng Aluminium
●Desain warna macem-macem
●0.15mm Silicon steel sheet saka Kawasaki, Japan
Kacepetan (RPM): 0~1900PRM/1v
Model:A2207.5
Kirim Pitakonan
Deskripsi Produk
Tuku Diskon Kualitas A2207.5 Motor Brushless kanthi rega murah digawe ing China. Flash Hobby yaiku pabrikan lan supplier Motor Brushless A2207.5 ing China.
Spesifikasi Motor A2207.5-1900KV
Max narik：1959g(6S/GF6045 2R)
Tegangan Input：DC7.4-24V(2-6S)
Saiki: 45.38A
Disaranake ESC: 30A~45A
Daya maksimum：1065W
Prop sing disaranake: prop 5 ~ 6 inch
Spesifikasi Motor A2207.5-2500KV
Max narik：1590g(4S/GF6045 2R)
Tegangan Input：DC7.4-16V(2-4S)
Saiki: 43.55A
Disaranake ESC: 30A~45A
Daya maksimum：709W
Prop sing disaranake: prop 5 ~ 6 inch
Spesifikasi Motor A2207.5-2750KV
Max narik：1640g(4S/GF6045 2R)
Tegangan Input：DC7.4-16V(2-4S)
Saiki: 56,93A
Disaranake ESC: 30A ~ 60A
Daya maksimum：910W
Prop sing disaranake: prop 5 ~ 6 inch
Fitur:
Rentang Suhu Kerja：-0℃~+80℃
Tipe Motor: Outrunner Brushless Motor, Tiga-fase Motor
Metode Kontrol：Gunakake ESC Lan Nyetel sinyal PWM Kanggo Control，PWM Imbuhan Range 900-2100US

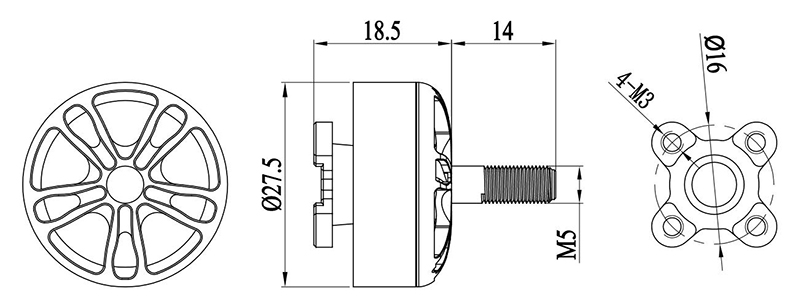

GAMBAR MOTOR:
Data Tes:
|
Ora. |
Volt (V) |
Prop |
Throttle(%) |
Saiki (A) |
Daya (W) |
Tekanan (g) |
Efisiensi (g/W) |
Suhu operasi (℃) |
|
A2207.5 -1900 kv |
24 |
DAL5047 3R |
50% |
8.78 |
210.7 |
670 |
3.18 |
78.2℃ |
|
60% |
14.88 |
357.1 |
931 |
2.61 |
||||
|
70% |
20.22 |
485.3 |
1098 |
2.26 |
||||
|
80% |
29.07 |
697.7 |
1418 |
2.03 |
||||
|
90% |
38.76 |
930.2 |
1674 |
1.80 |
||||
|
100% |
40.65 |
954.5 |
1713 |
1.79 |
||||
|
24 |
GF6045x2 |
50% |
10 |
234.8 |
811 |
3.45 |
108.1℃ |
|
|
60% |
16.57 |
389.1 |
1088 |
2.80 |
||||
|
70% |
20.29 |
476.4 |
1262 |
2.65 |
||||
|
80% |
28.26 |
663.5 |
1557 |
2.35 |
||||
|
90% |
42.49 |
997.7 |
1876 |
1.88 |
||||
|
100% |
45.38 |
1065 |
1959 |
1.84 |
||||
|
A2207.5 -2500 kv |
16 |
DAL5047 3R |
50% |
8.58 |
139.8 |
494 |
3.53 |
59.3℃ |
|
60% |
14.19 |
231.2 |
690 |
2.99 |
||||
|
70% |
21.51 |
350.4 |
912 |
2.60 |
||||
|
80% |
30.63 |
499.0 |
1133 |
2.27 |
||||
|
90% |
37.6 |
612.5 |
1291 |
2.11 |
||||
|
100% |
38.94 |
634.3 |
1305 |
2.06 |
||||
|
16 |
GF6045x2 |
50% |
9.8 |
159.6 |
700 |
4.38 |
68.2℃ |
|
|
60% |
15.9 |
259.0 |
927 |
3.58 |
||||
|
70% |
23.33 |
380.0 |
1158 |
3.05 |
||||
|
80% |
32.25 |
525.4 |
1380 |
2.63 |
||||
|
90% |
41.15 |
670.3 |
1540 |
2.30 |
||||
|
100% |
43.55 |
709.4 |
1590 |
2.24 |
||||
|
A2207.5 -2750kv |
16 |
DAL5047 3R |
50% |
12.23 |
195.7 |
584 |
2.98 |
65.3℃ |
|
60% |
19.34 |
309.4 |
801 |
2.59 |
||||
|
70% |
25.63 |
410.1 |
964 |
2.35 |
||||
|
80% |
36.57 |
585.1 |
1222 |
2.09 |
||||
|
90% |
50.15 |
802.4 |
1432 |
1.78 |
||||
|
100% |
51.53 |
824.5 |
1457 |
1.77 |
||||
|
16 |
GF6045x2 |
50% |
14.05 |
224.8 |
648 |
2.88 |
83.5℃ |
|
|
60% |
22.32 |
357.1 |
952 |
2.67 |
||||
|
70% |
33.87 |
541.9 |
1238 |
2.28 |
||||
|
80% |
46.53 |
744.5 |
1480 |
1.99 |
||||
|
90% |
54.54 |
872.6 |
1596 |
1.83 |
||||
|
100% |
56.93 |
910.9 |
1640 |
1.80 |
||||
|
|
||||||||
Detail Produk:
Instruksi sing disambungake:
dikemas:
Flashhobby motor * 1, M2X5mm * 4, M2X7mm * 4, M5 nut * 1
FAQ
1、Apa MOQ saka item biasa?
A: Ora ana MOQ winates kanggo barang saham. Nanging yen perlu kanggo ngganti werna utawa desain, kita bakal nyetel MOQ minangka saben request beda.
2、Yen jumlah pesenan gedhe, yen bisa ngetrapake diskon saka rega bakul?
A: Ya, kita bakal menehi penawaran paling apik miturut panjaluk sing beda.
3、Yen perlu ngganti apa-apa nalika pesenan dikonfirmasi, pls carane kita bisa nindakake?
A: Yen sampeyan duwe panjaluk, pls hubungi kita ing 2 dina nalika pesenan dikonfirmasi, yen ora, iku ora bisa dibatalake utawa ngganti sembarang desain motor.
4、Suwene wektu pangiriman?
A: Iku bab 7 dina nalika pesenan dikonfirmasi kanggo item biasa.
5、Pira wektu tunggu pesenan OEM/OMD?
A: Biasane iku 15-30 dina.
6、Apa MOQ sakapesen OEM/OMD?
A: Motor warna tunggal MOQ-200PCS
Multicolor Motor MOQ-1000PCS
