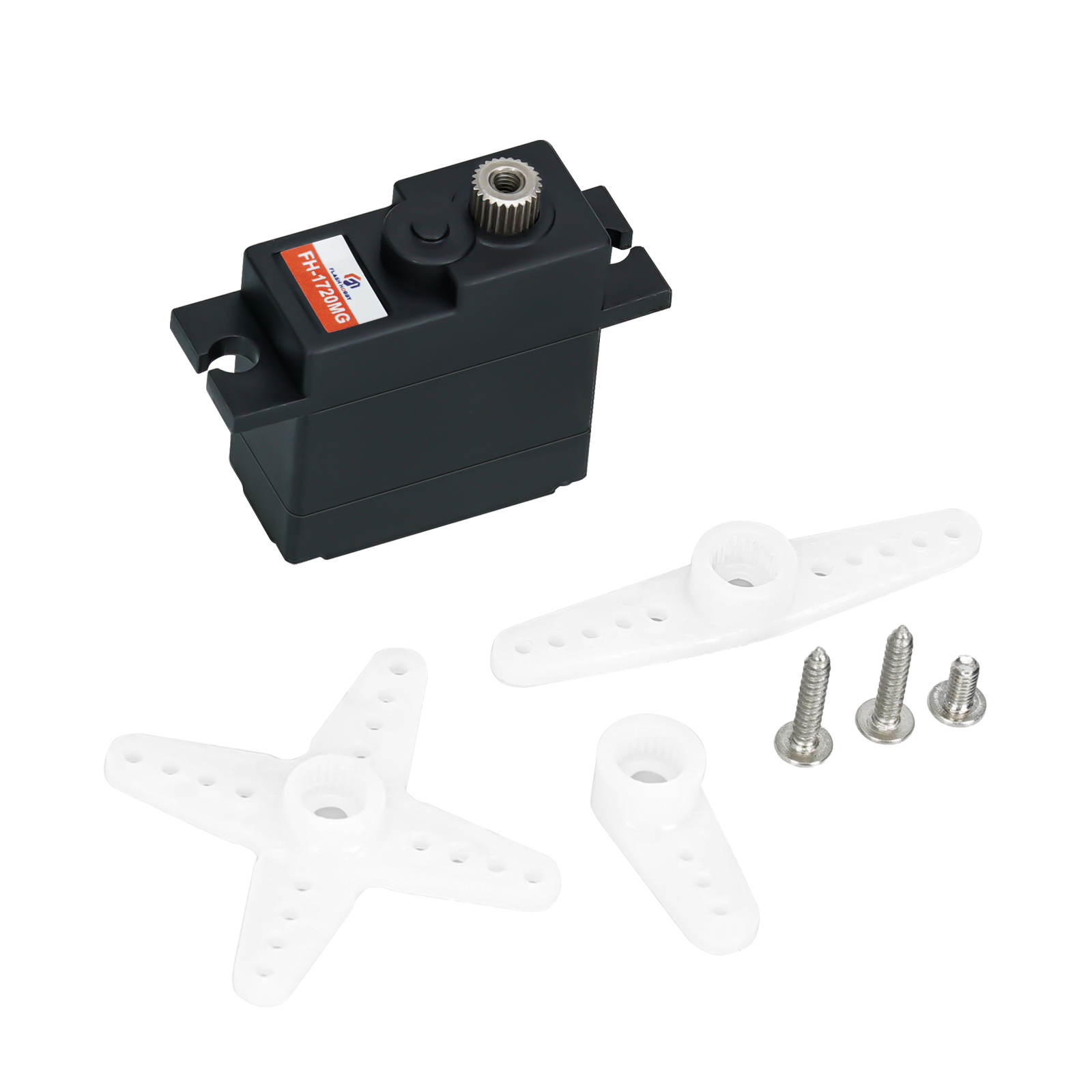

FH-1720mg Micro Servo

FHH-1720mg Micro Servo Fitur:
- Servo Digital Cardidable sing Dhuwur
- Gear aluminium sing digawe tliti kanthi dhuwur kanthi anodizing
- Bakar Bola Dual


Mati Band: 7μs
Motor: Motor inti
Kerajinan sing digunakake: 1520μs / 330Hz
Voltase operasi: dc4.8 ~ 6.0 v
Range Operating Suhu: -10 nganti + 50 °
Kacepetan Operasi (4.8V): 0.17sec / 60 °
Kacepetan Operasi (6v): 0.14 sec / 60 °
Torsi Stall (4.8v): 1.8kg.cm
Torsi Stall (6V): 2.0kg-cm
Potteriometer drive: langsung drive

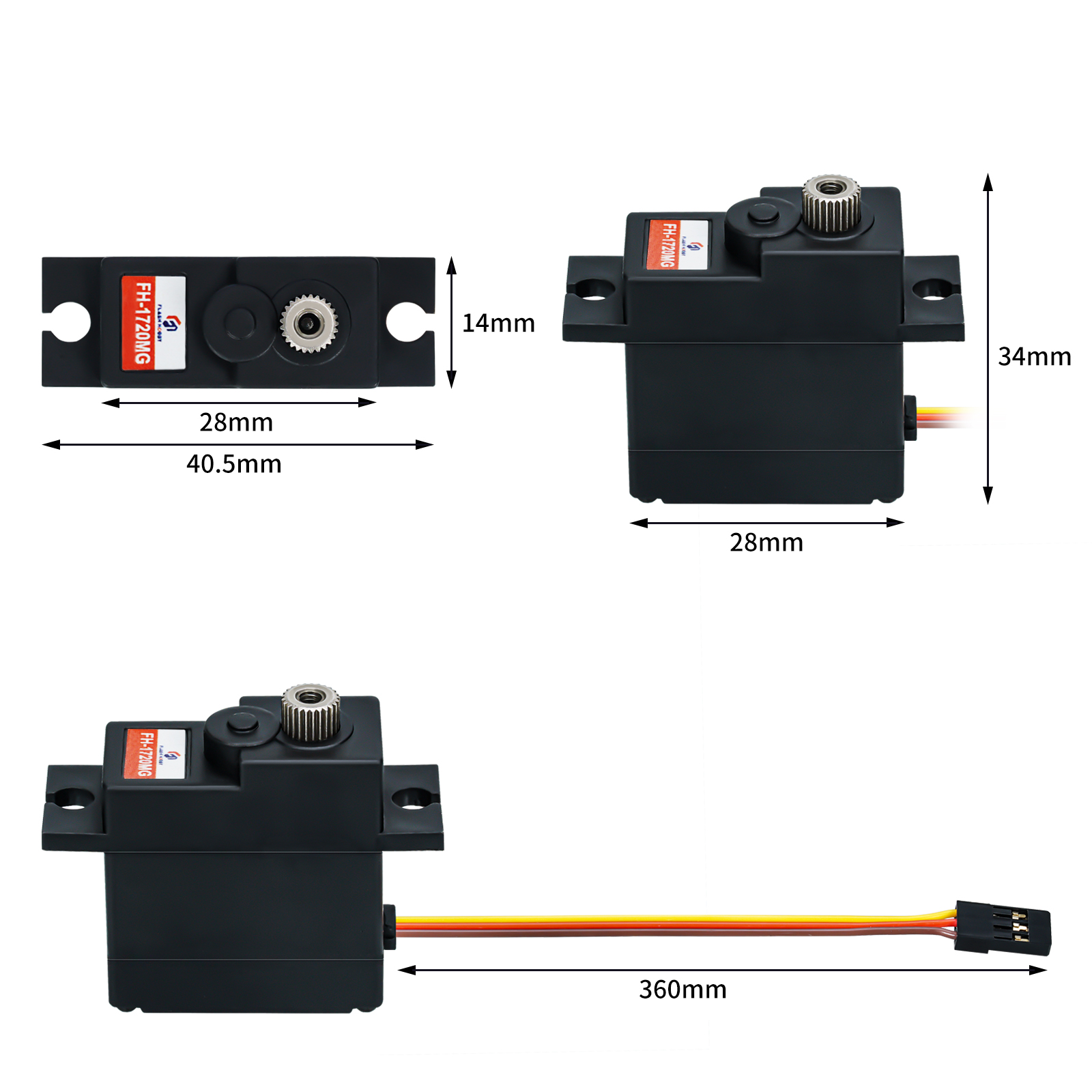

Ukuran: 28X13.2x29.6 mm

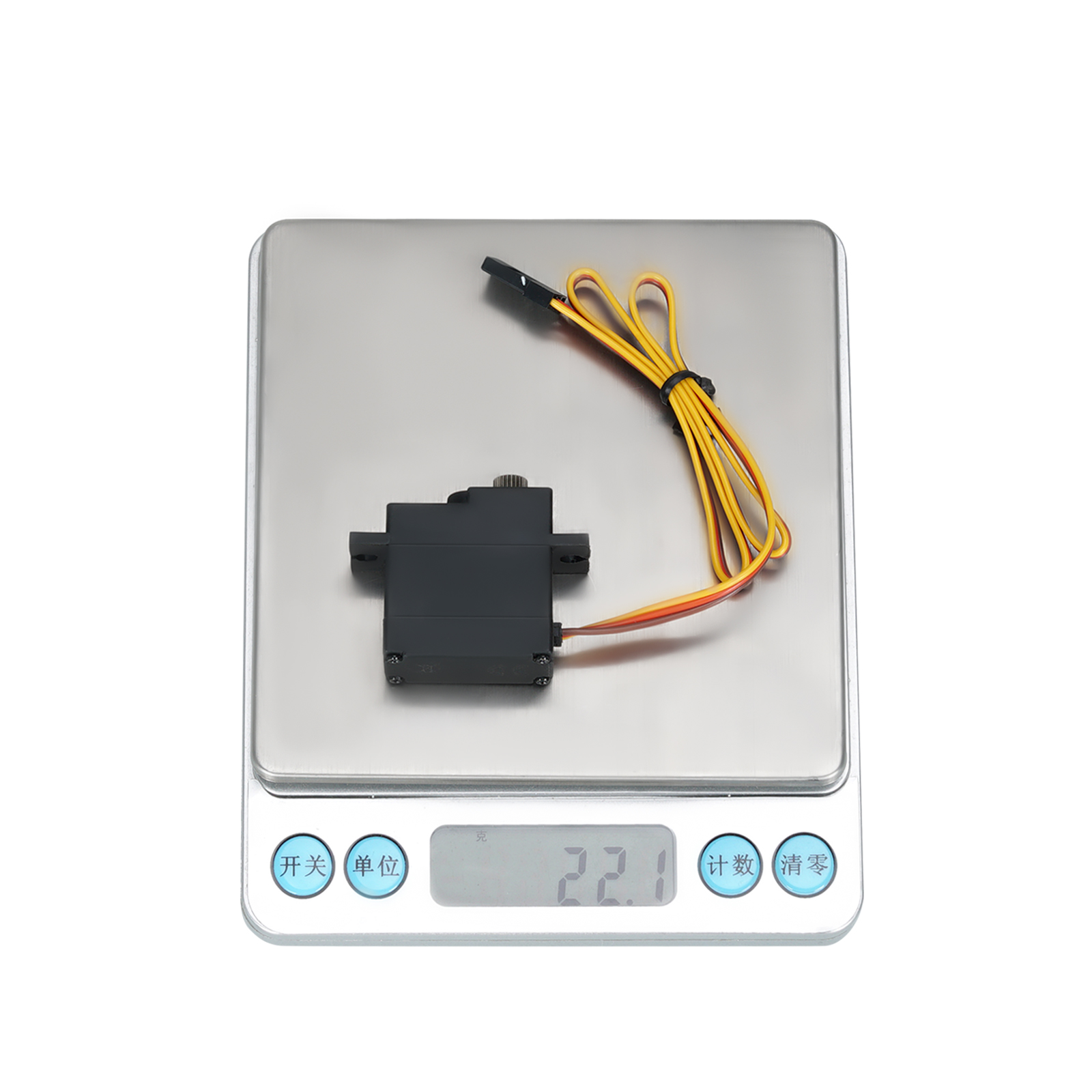

Bobot: 19 g
Dawane kabel Konektor: Jr 180 mm

Bearing: 2BB

Sistem Kontrol	Control Modulasi Widget Pulsa 1520 μsec
Range Voltase Operasi	4.8v ~ 6.0v
Range Suhu Operasi	-10c ° ~ + 50C °
Bunder	＞12000 kaping
Perjalanan Operasi	120 °±10 °
Wates Angle	180 ° ± 10 °
Arah	Jam maneh Wicaksana / Perjalanan Pulsa 800-→ 2200 00sec
Jenis Tipe	IC Drive
Jinis motor	Inti
Jenis Potentiometer	Potensiometer
Jenis amplifier	Kontrol Digital
Ukuran	28X13.2x29.6 mm
Bobot:	19 ± 1g  (tanpa sungu servo)
Tes voltase:	Ing 4.8v	Ing 6.0v
Torsi Ngadeg	1.80 ± 0.2kg-cm	2.0 ± 0,2kg-cm
Kacepetan	0.17 ± 0,01SEC / 60 °	0.14 ± 0,01 sec / 60 °
Saiki Saiki	90 ± 20ma	100 ± 30ma
Running Saiki	750 ± 50ma	950 ± 50ma
Lebar Band Mati	7 USSEC	7 USSEC
Bawang Bear	2BB
Bahan Gear	Gear logam
Bahan Bahan	Serat plus nilon
Dawane kabel Konektor	180 ± 5 mm
Gauge Kabel Konektor	28AwG PVC
Info kabel (coklat)	Negatif
Info Kabel (Abang)	Positif
Info kabel (kuning)	S siji
